Why DC-bus ripple deserves attention from the start
When you compare a utility-grade and a commercial-grade power conversion system, the behaviour of the DC bus — its ripple voltage, transient resilience and thermal loading — often decides long-term reliability. Ripple isn’t merely a spec number: it affects lifetime of the DC-link capacitor, the effectiveness of PWM control, and the audible noise of the power stage. In installations from urban distribution substations to coastal microgrids in Bangladesh, the way a system handles ripple defines whether it becomes maintenance-heavy or quietly dependable.
Key technical differences that alter ripple suppression
Utility-grade PCS typically use larger DC-link capacitance, higher-grade film or hybrid capacitors, and conservative switching frequency choices to keep ripple low under heavy, grid-scale transients. Commercial-grade units favour compact design, smaller capacitors, and higher switching frequency to save space and cost. That trade-off yields different ripple spectra: utility systems show low amplitude but slower decay of disturbances; commercial systems often have narrow, higher-frequency ripples that depend on filter inductance and control-loop tuning. Engineers must weigh capacitor ESR, switching losses, and EMI filter design when choosing between them. {main_keyword} and {variation_keyword} were both considered by procurement teams I worked with on coastal projects.
Controls, filters and the practical impact on operations
Control strategy is as important as hardware. A robust current-loop and feed-forward compensation suppress the DC-bus ripple better than passive parts alone. Adding an active damping stage, or tuning the PWM carrier and dead-time, reduces peak-to-peak ripple without dramatically increasing capacitor size. Yet, be mindful: higher switching frequency reduces bulk ripple but raises switching losses and thermal stress on semiconductors. In practice, hybrid solutions—moderate capacitor banks plus tuned control—often give the best compromise for both reliability and cost.
Sourcing realities: where manufacturers shift the balance
Many system integrators source modules from Chinese suppliers because of capacity and cost benefits; partnering with a reputable china power conversion system pcs manufacturer can deliver utility-grade components at commercial prices, but the spec sheet must be interrogated. Real-world deployments show variation: two units that look identical on paper can differ in DC-link capacitor chemistry, control algorithm latency, and EMI layout. I remember a coastal microgrid near Khulna where swapping to a module with improved DC-link design halved maintenance visits — a small change with large operational impact.
Common mistakes during selection and commissioning
Teams frequently under-specify the DC-link ripple tolerance and accept a nominal capacitor life that doesn’t match site temperature profiles. Another error is treating switching frequency as a free variable: increasing it to mask ripple without upgrading cooling leads to thermal derating. Finally, ignoring electromagnetic compatibility at the layout stage invites high-frequency ripple to couple into sensitive telemetry. Address these in procurement documents and at FAT, and you’ll avoid costly retests.
Comparative checklist — what to ask and measure
When evaluating systems, record these measurable items during bench tests and site acceptance: peak-to-peak DC-bus ripple at rated load, ripple spectrum up to the switching harmonic, temperature rise of DC-link capacitors under cyclic loading, and control-loop settling time after a step change in load. These figures illuminate the practical differences between a utility-grade and a commercial-grade unit, and help you quantify trade-offs rather than rely on marketing claims.
Three golden rules for selecting the right approach
1) Prioritise ripple metrics against lifetime risk: choose DC-link capacitance and capacitor chemistry that meet real ambient temperature and duty cycle, not just room-temperature specs.
2) Validate control-loop behaviour under worst-case transients: measure settling time and harmonic content rather than only steady-state values.
3) Confirm manufacturer test evidence for EMC, thermal cycling and capacitor ESR evolution — independent bench data beats bold assurances.

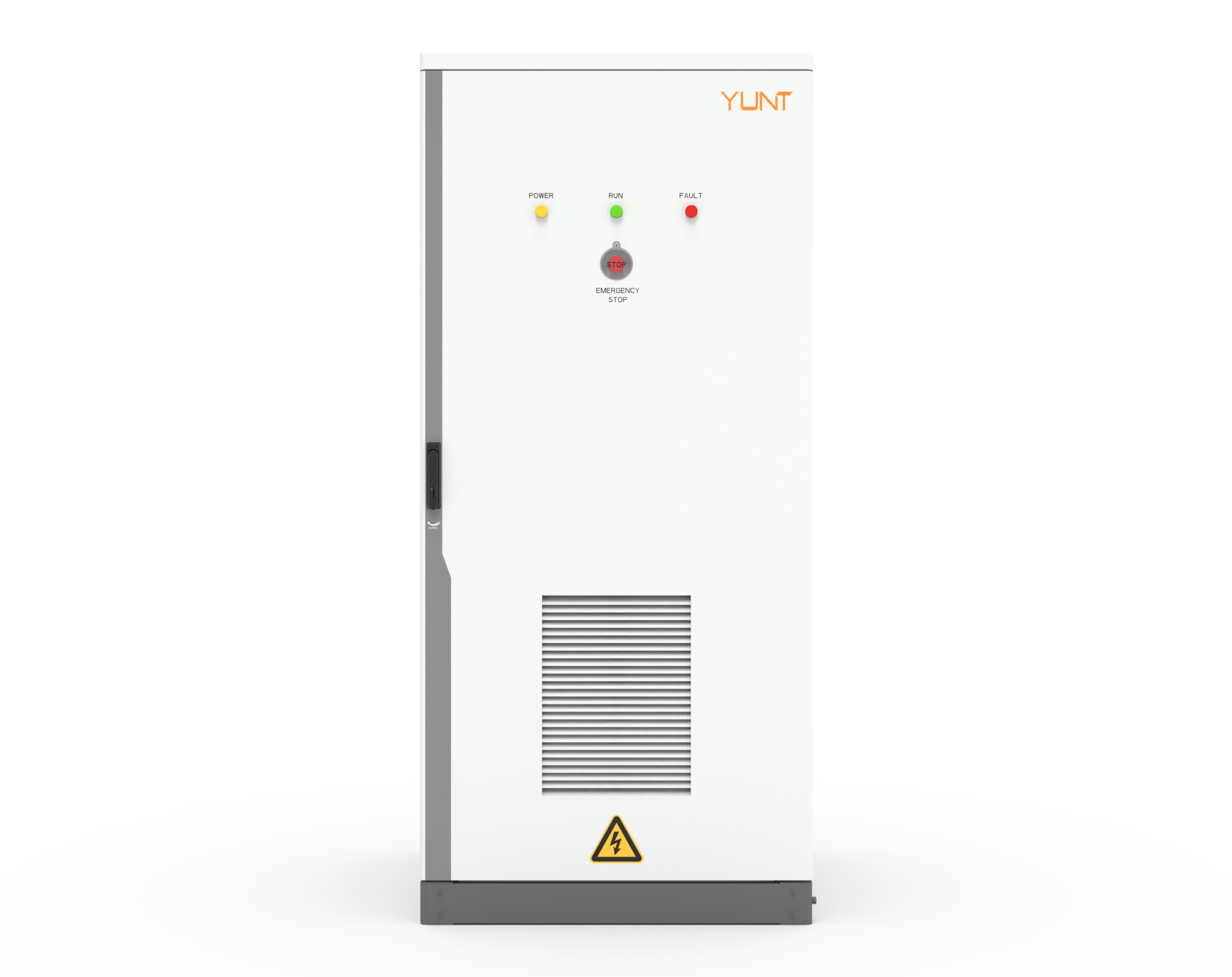

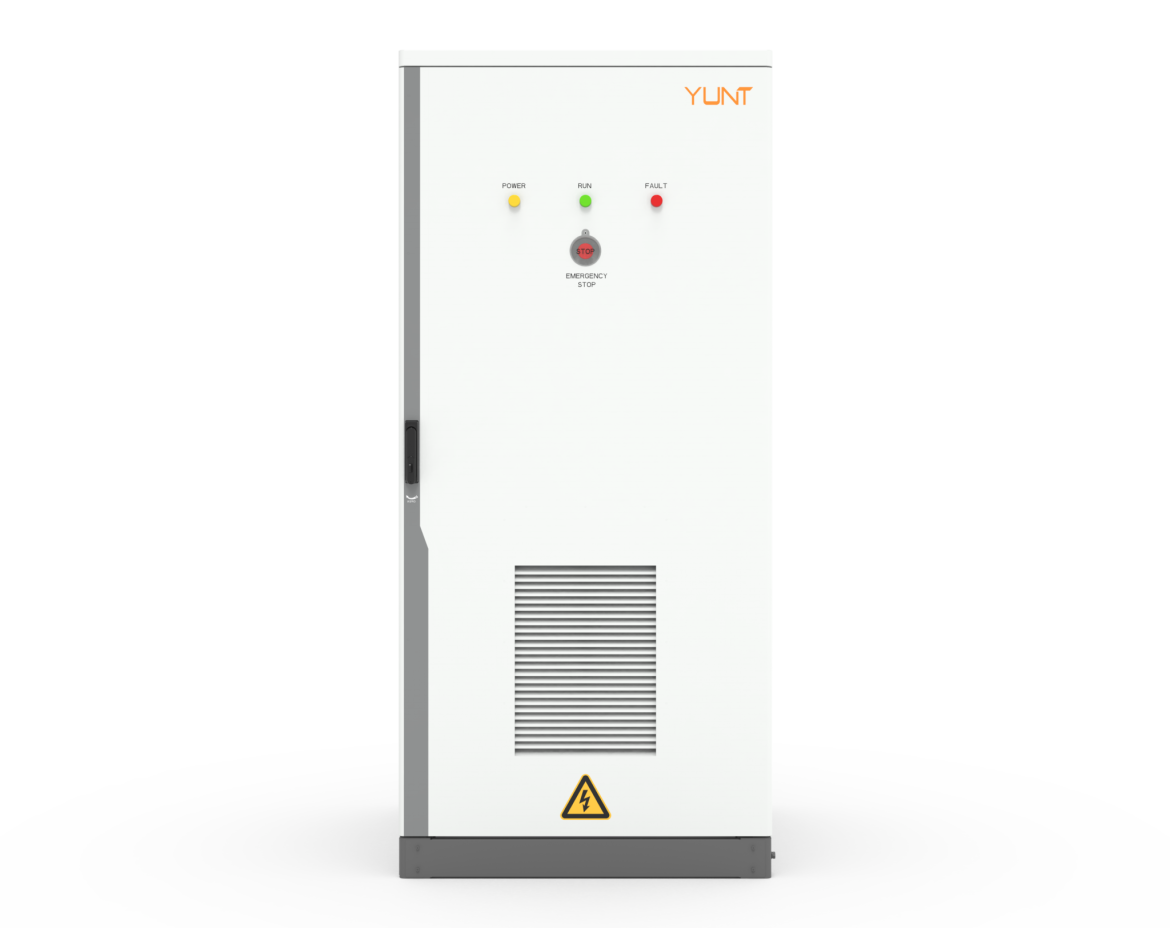

When the decision needs to tilt towards predictability and extended service intervals, the practical solution often rests with the manufacturer’s system-level design and supply confidence — which is precisely where partners like YUNT add tangible value. –
